Appunti esercitazioni FISICA II

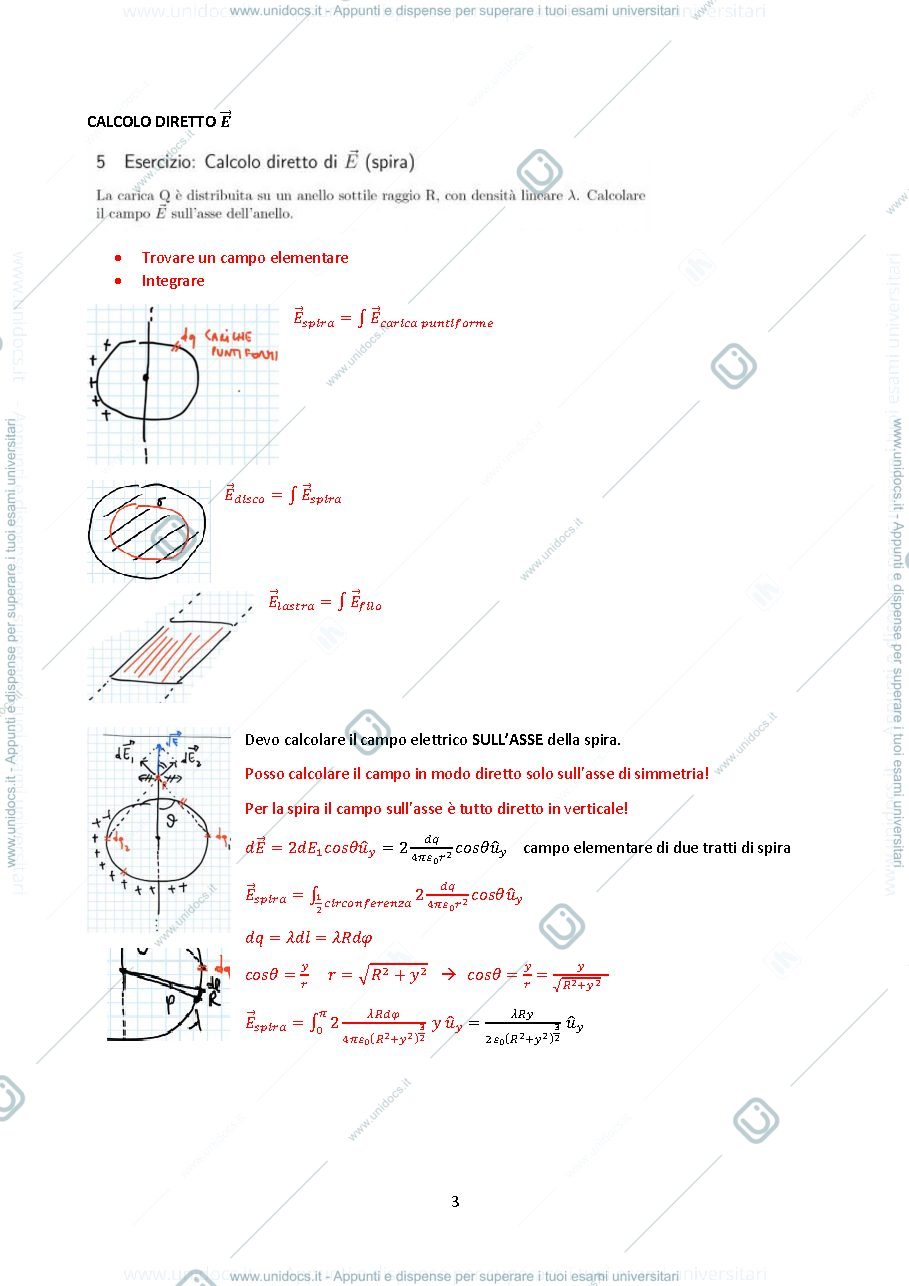

It seems like you have a mix of mathematical expressions and text that are not fully clear or complete. I'll try to interpret and provide some context based on the information given, focusing mainly on the electrostatics part. ### Electrostatics Problem The problem appears to be about calculating the electric field due to an infinitely long straight wire with linear charge density \(\lambda\). The key steps are: 1. **Electric Field Due to a Long Straight Wire:** - The electric field \(E\) at a distance \(r\) from an infinitely long straight wire carrying a uniform linear charge density \(\lambda\) is given by: \[ E = \frac{\lambda}{2\pi \epsilon_0 r} \] where \(\epsilon_0\) is the permittivity of free space. 2. **Discontinuity in Electric Field:** - The electric field can be discontinuous at the wire itself, but it must be continuous everywhere else because the potential \(V\) cannot have a jump discontinuity (since potential represents energy which should be continuous). 3. **Superposition Principle:** - If there are multiple charges or wires, you can find the total electric field by superposing the individual fields. ### Mathematical Expressions Let's break down some of the expressions given: - The integral for the electric field due to a long wire: \[ E = \int_{0}^{L} \frac{\lambda}{2\pi \epsilon_0 r} dr \] Here, \(r\) is the distance from the wire and \(L\) represents the length of the segment being integrated. However, for an infinitely long wire, this integral simplifies to: \[ E = \frac{\lambda}{2\pi \epsilon_0 r} \] - The electric field due to a finite-length wire can be more complex, involving integration over the length of the wire. ### Gauss's Law Gauss's law states that the total electric flux through any closed surface is proportional to the enclosed charge: \[ \oint_S \mathbf{E} \cdot d\mathbf{A} = \frac{Q_{\text{enc}}}{\epsilon_0} \] where \(Q_{\text{enc}}\) is the total charge enclosed by the Gaussian surface. ### Vector Calculus Operations - **Divergence**: \[ \nabla \cdot \mathbf{F} = \frac{\partial F_x}{\partial x} + \frac{\partial F_y}{\partial y} + \frac{\partial F_z}{\partial z} \]
