Dispense VERIFICATO

colonne a piatti- esercizi

Università degli studi di Bologna ingegneria energetica 2020
134 visualizzazioni
Nessun voto ancora
Condividi: WhatsApp Telegram

Di cosa parla

Riassunto AI · si legge in un minuto

Based on the text and calculations you provided, here is a structured reconstruction of **Exercise 2** regarding the absorption of Carbon Dioxide ($CO_2$) in water at $5^\circ\text{C}$. The original text contains HTML entities (e.g., `�...`) which represent mathematical symbols and variables. I have decoded them to present a clear solution. --- ### **Problem Statement & Data** * **Process:** Absorption of $CO_2$ in water at $5^\circ\text{C}$. * **Henry's Constant ($H_E$):** $876 \, \text{bar/mole fraction}$ (at $P = 10 \, \text{bar}$).
Leggi il riassunto completo
Based on the text and calculations provided in your input, here is a structured reconstruction of **Exercise 2 (Esercizio 2)**. The original text contains HTML entities (`趲...`) which represent special characters or formatting codes. I have decoded them to present a clear engineering solution regarding gas absorption (CO₂ into water). ### **Problem Statement Summary** * **Goal:** Calculate the number of theoretical stages ($N$) required for an absorber column. * **System:** Absorption of Carbon Dioxide ($CO_2$, denoted as $A$ or solute) in Water (solvent, $S$). * **Conditions:** Temperature = 5°C, Pressure ($P$) = 10 bar. * **Equilibrium Data:** Henry's Law constant provided; equilibrium line data given for plotting. --- ### **Step-by-Step Solution** #### **1. Given Data & Assumptions** * **Henry's Constant ($H_E$):** $876 \text{ bar/mole fraction}$ (at 5°C). * *Note: The text uses notation like $\frac{x_A}{y_A} = H$, implying a specific form of Henry's law.* * **System Pressure ($P$):** $10 \text{ bar}$. * **Absorption Efficiency:** 92% of $CO_2$ is absorbed; therefore, 8% remains in the gas phase. * Inlet Gas Mole Fraction ($y_{in}$ or $Y_1$): Derived from equilibrium context as related to a value leading to $0.11$. * Outlet Liquid Composition: Assumed pure water initially ($x_A = 0$). #### **2. Calculation of Equilibrium Constant ($m$)** Using the dilute solution assumption and Henry's Law adapted for pressure units: $$ m = \frac{H_E}{P} $$ $$ m = \frac{876}{10} = 87.6 $$ *(Note: Depending on the specific definition used in your textbook, this might represent $y_A/x_A$ or similar ratios scaled by pressure).* #### **3. Material Balance & Operating Line** We define the inlet and outlet compositions based on the problem statement logic found in pages 15-20 of your text: * **Inlet Liquid ($x_0$):** $0$ (Pure water). * Calculated corresponding gas concentration at equilibrium with pure solvent: $$ y^*_0 = m \cdot x_0 + b \quad (\text{or similar intercept}) $$ From the text calculation: The term resulting from the bottom of the column is calculated as **$0.0089$**.

Riassunto generato con l'intelligenza artificiale a partire dagli appunti. Come lo facciamo

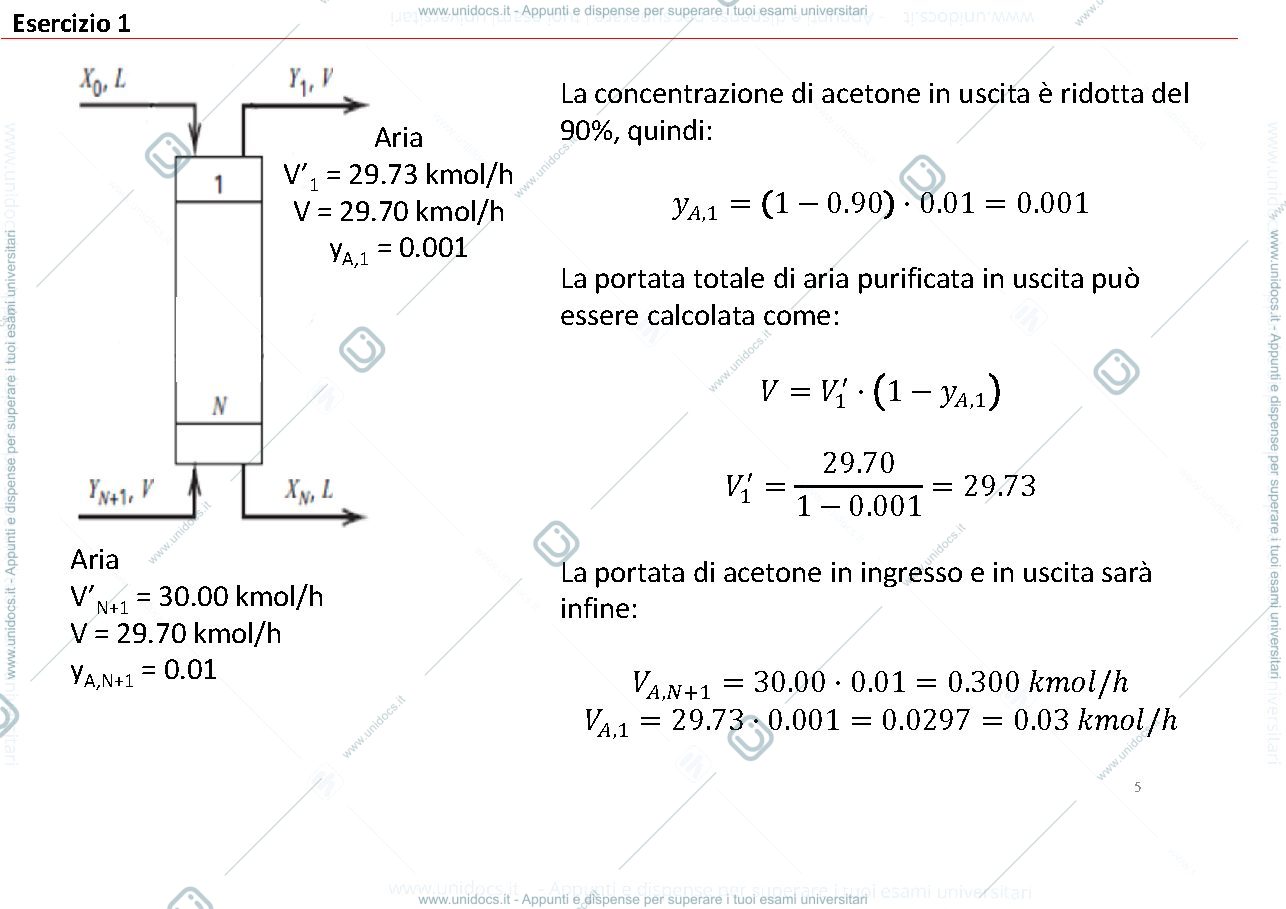

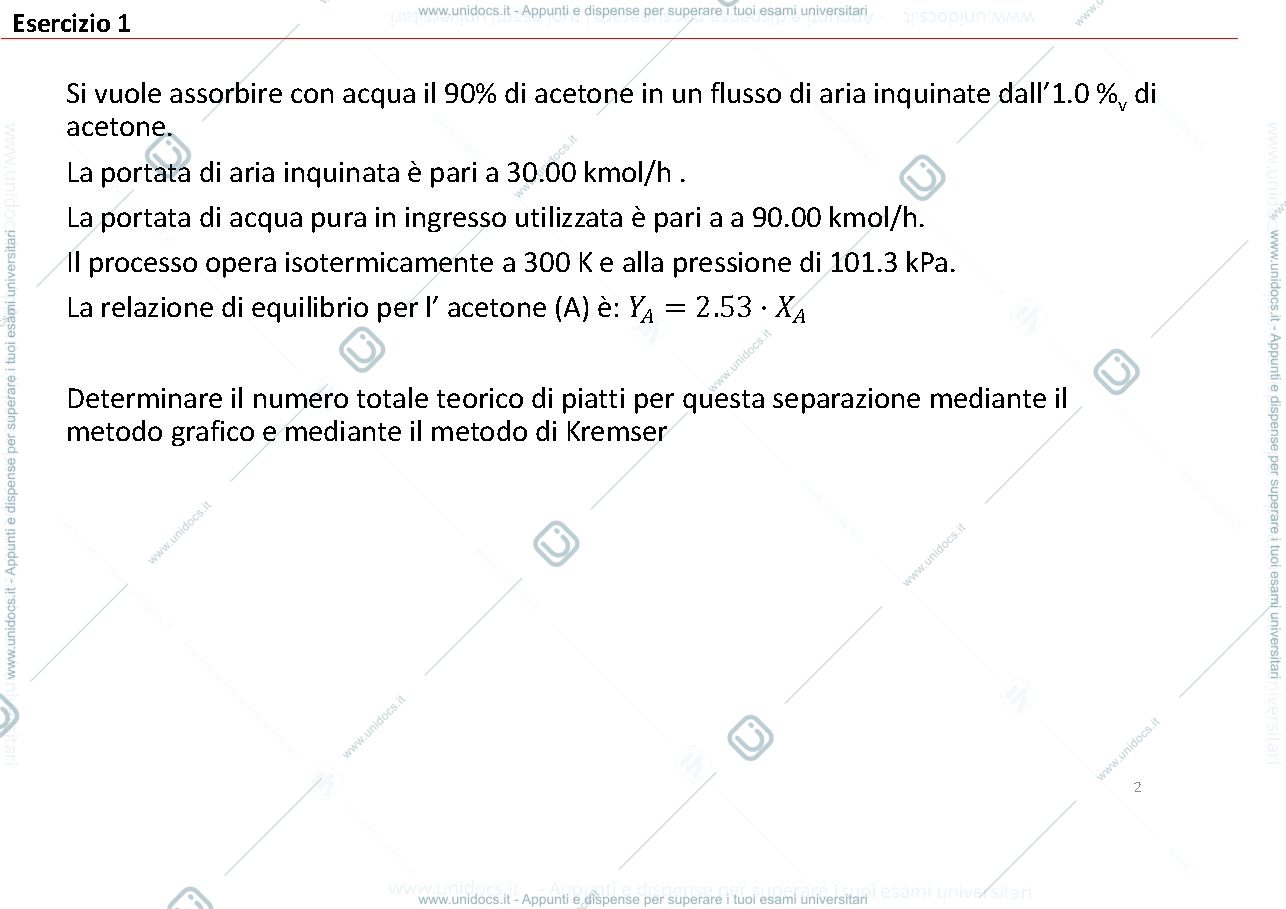

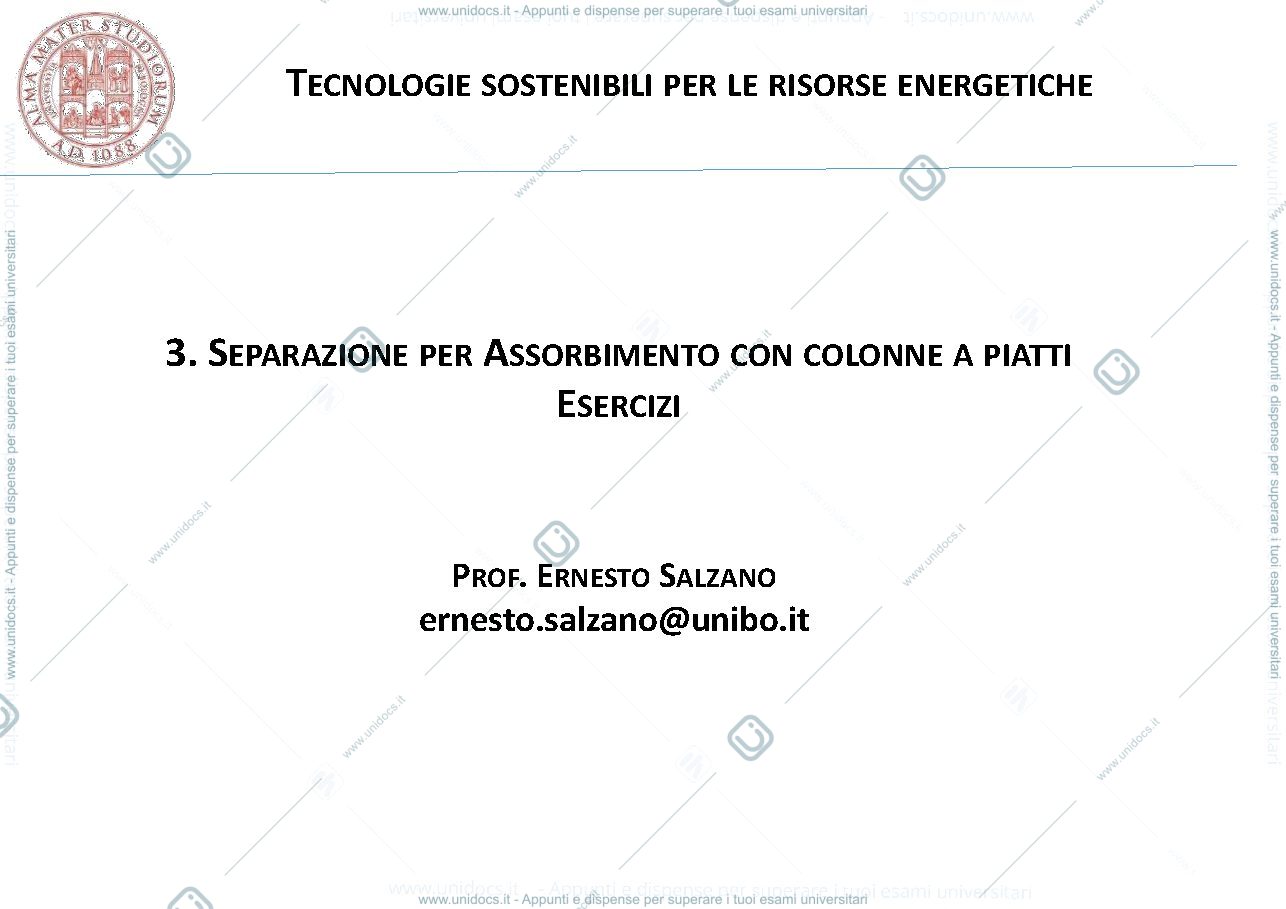

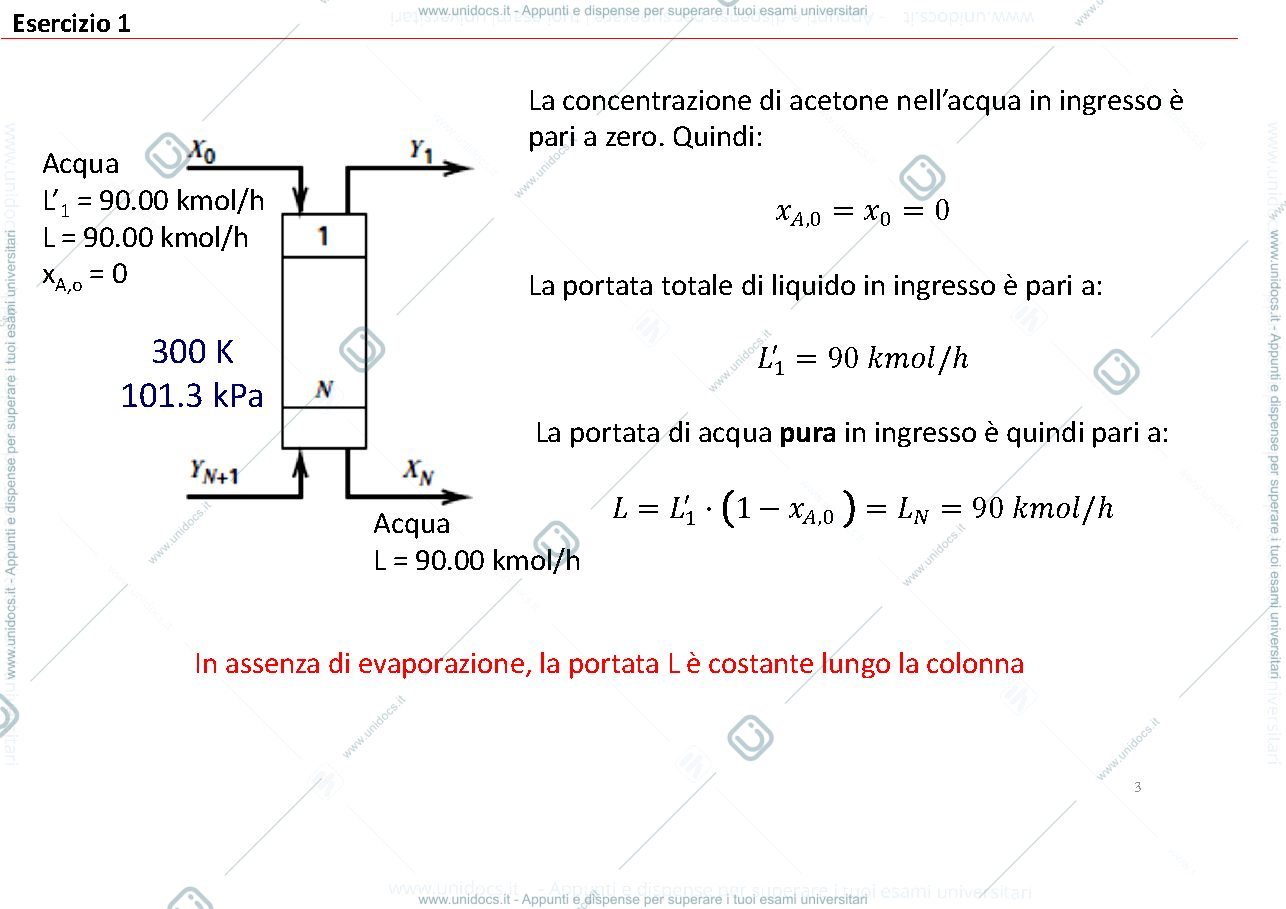

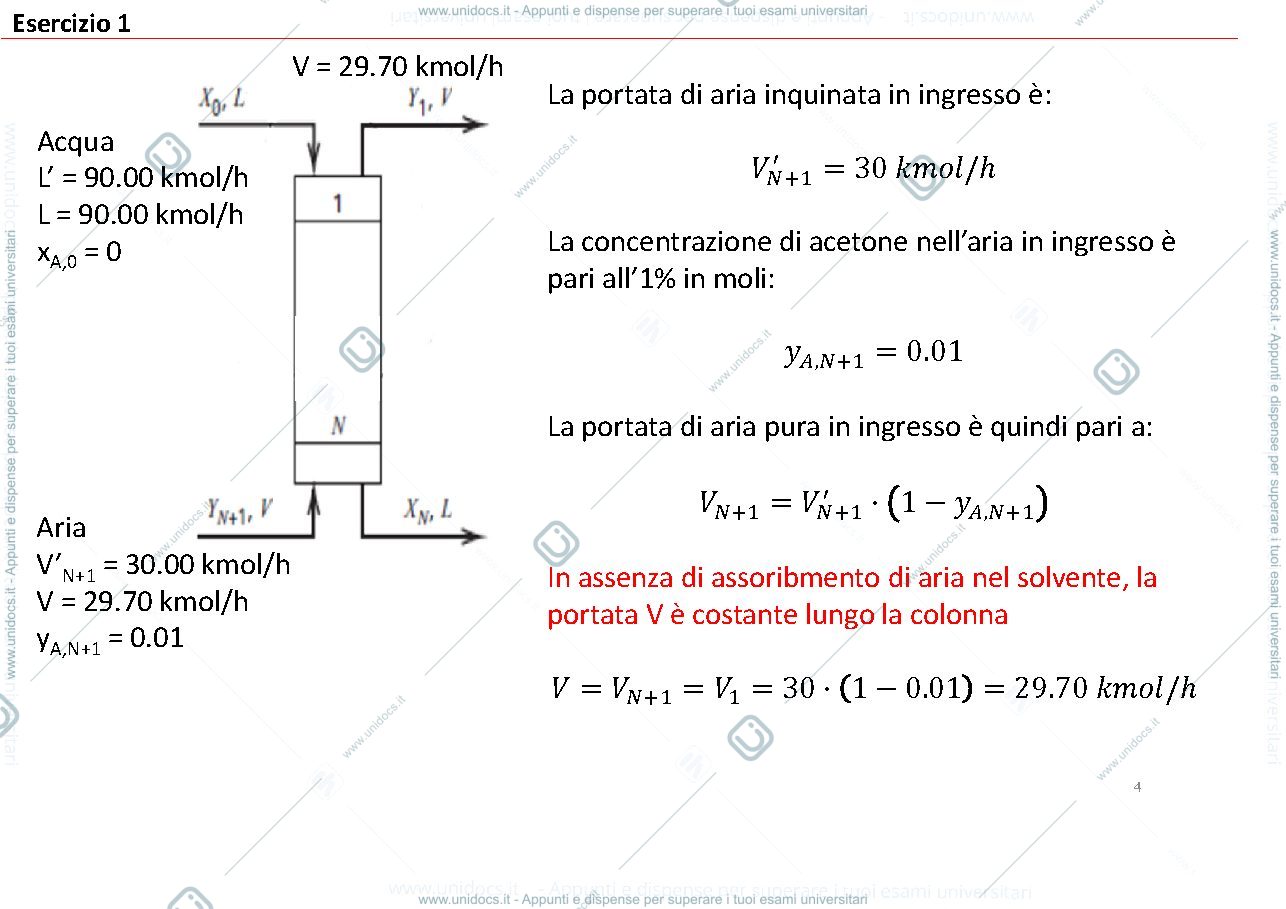

Anteprima pagina 1 — colonne a piatti- esercizi Anteprima pagina 2 — colonne a piatti- esercizi Anteprima pagina 3 — colonne a piatti- esercizi Anteprima pagina 4 — colonne a piatti- esercizi Anteprima pagina 5 — colonne a piatti- esercizi
