Di cosa parla

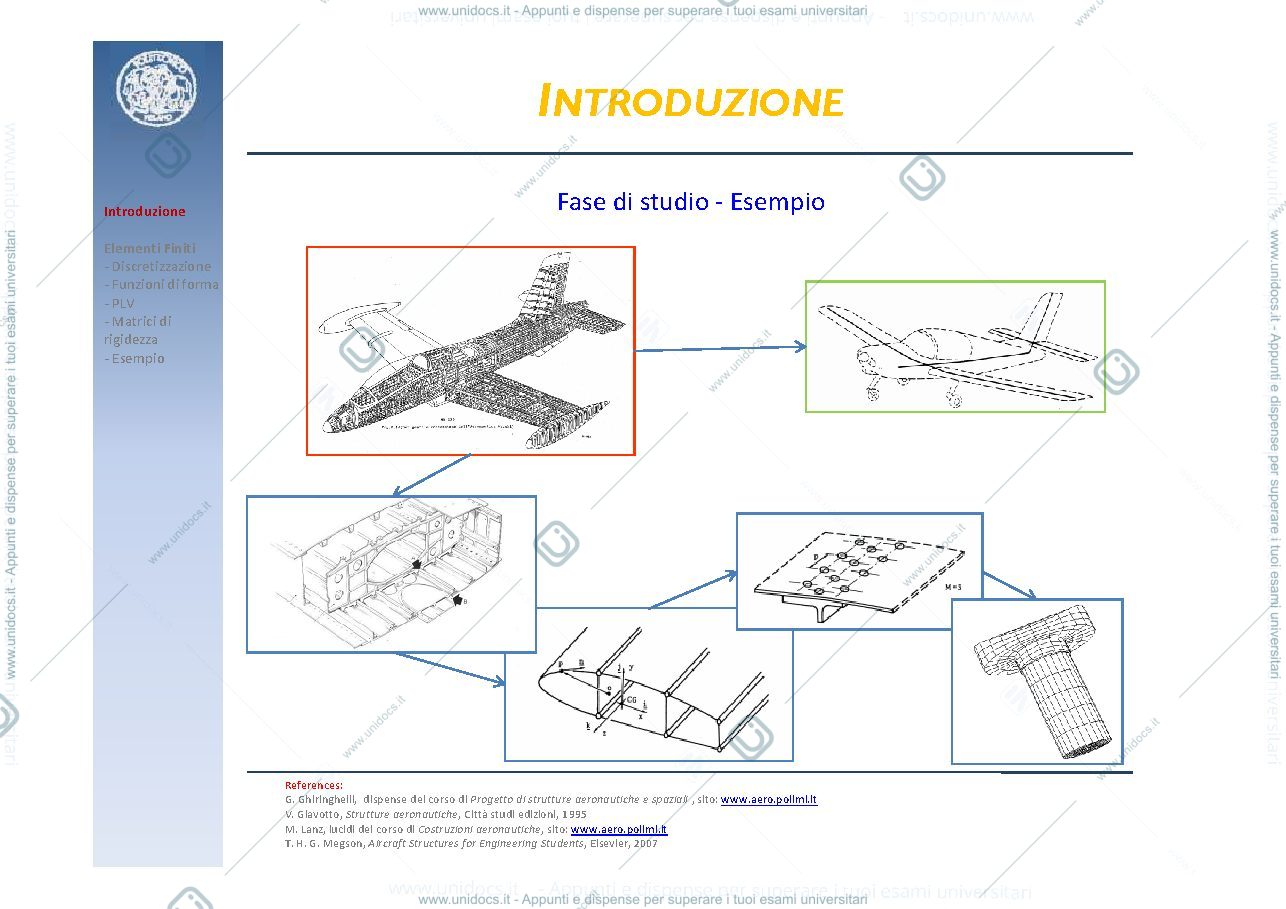

This document introduces the Finite Element Method (FEM) in the context of aerospace structures, a critical tool for detailed analysis.
  • Introduction to FEM:
    • FEM is a method applicable to any continuum described by differential equations, subjected to arbitrary boundary conditions.
    • It simplifies both geometry (engineering approach) and equations (mathematical approach).

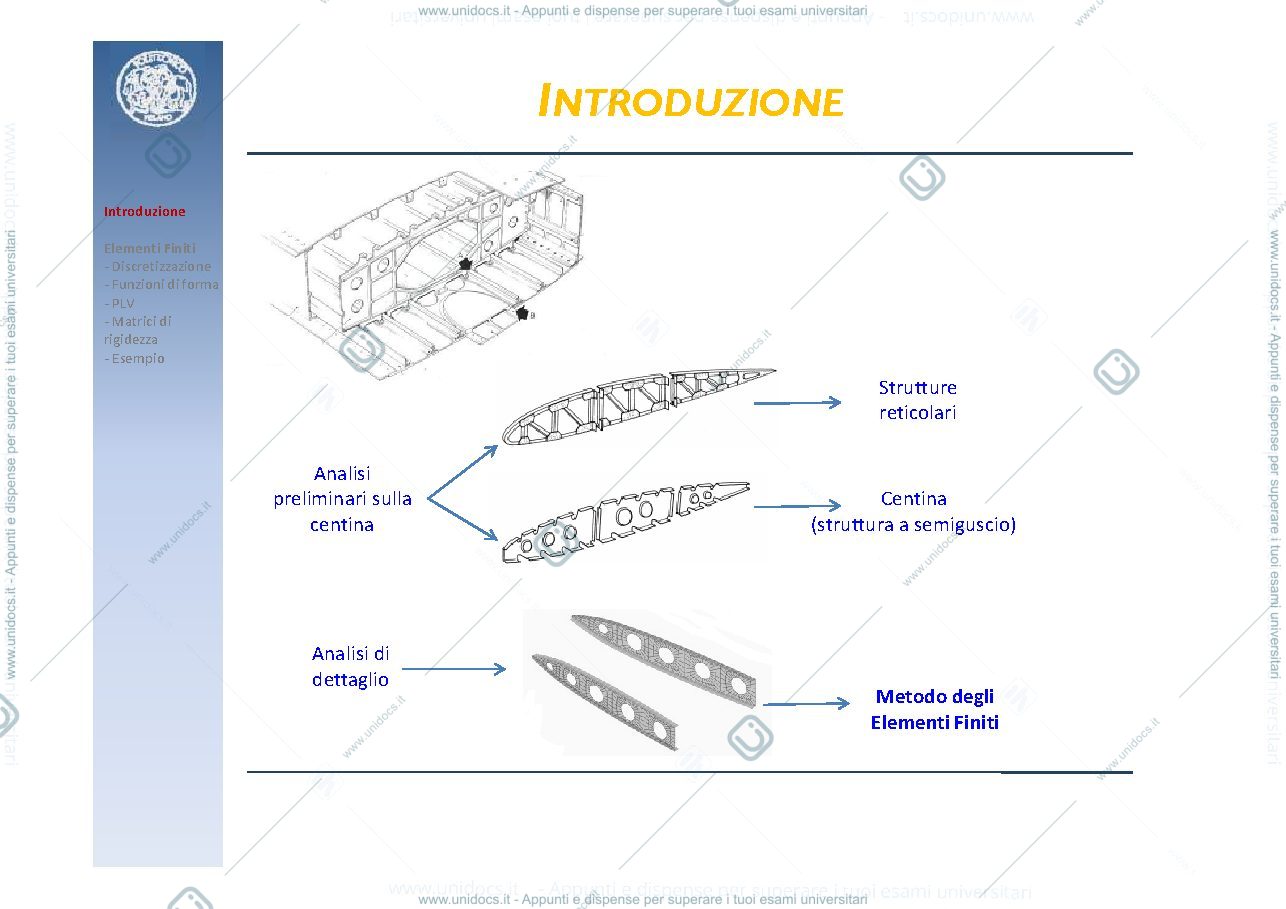

    • Integral to structural analysis, it's particularly useful for detailed analysis of components like ribs.
  • Advantages of FEM:
    • Applicable to diverse linear and non-linear problems.
    • Allows modeling of highly complex geometries, loadings, and constraints.
    • Facilitates the simultaneous use of different element types, physical properties, and materials.
  • Disadvantages of FEM:
    • High complexity in model creation.
    • Generates a large volume of results.
    • Lacks uniqueness in modeling approaches.
    • Requires conscious and informed use of FE software, along with clear objectives.
    • Can incur significant computational costs.
    • Potential for underestimation of possible errors.
  • Main Steps in FEM Analysis:
    • Discretization: Dividing the continuous structure into a finite number of elements.
    • Interpolation of Unknowns: Discretizing the unknown field (e.g., displacements) using shape functions that describe its behavior at specific points (nodes).
    • Shape Functions: Used to interpolate the unknowns within each element based on nodal values.
    • Solution: Solving the system of equations derived from the element formulations.
    • Post-processing: Calculating stresses and deformations for each element.
  • Discretization of the Continuum:
    • The continuum is divided into small, finite portions (elements).
    • Nodal displacements are the primary unknowns.
    • Examples include 1D (linear, quadratic), 2D (bilinear, biquadratic), and 3D elements.
  • Shape Functions (Funzioni di Forma):
    • Define the displacement of a generic point within an element based on nodal displacements: {s} = [N]{U}.
    • Key Characteristics: Must be complete, continuous, regular, and conform to boundary conditions.
    • Conditions:
      • Displacement Congruence: Ensure correct displacement of adjacent element nodes (no gaps or overlaps), internal continuity and differentiability, and unit value at their respective nodes on boundaries.
      • Solution Convergence: Ensures an asymptotically stable result as the model is refined (increasing the number of elements).
    • Completeness: Guarantees rigid body motions and descriptions of constant deformations and finite boundary stresses, achieved via complete interpolating polynomials.
    • Compatibility: Ensures continuity at the interface between elements (C0 for displacements, C1 for displacements and rotations).
  • Principle of Virtual Work (PLV):
    • A fundamental principle used to derive the equilibrium equations in FEM.
    • It states that the virtual internal work (due to internal stresses) must equal the virtual external work (due to external forces, including volume, surface, and concentrated forces, and inertia forces).
  • System Equations:
    • Static Problem: [K]{U} = {P}, where [K] is the global stiffness matrix (sum of element stiffness matrices), {U} is the global displacement vector, and {P} is the global force vector.
    • Dynamic Problem: [M]{Ü} + [K]{U} = {P}, where [M] is the global mass matrix and {Ü} is the global acceleration vector.
